Finishes


Many different finishes are available. Our standard finish is a Super Durable Powder Coat finish meeting AAMA 2604 Specifications. White, Black, Gray, Almond, Golden Clay, & Bronze are typical in-stock colors. Please contact us to discuss the best finish and color options for your application. Below is a list of commonly used finish types.

*Polyester Powder Coat
*Super Durable Polyester Powder Coat
*Fluoropolymer Powder Coat
*Enamel Wet Paints
*Fluoropolymer Wet Paints
*Anodizing
Note: Most powder and wet paint finishes are available in multiple coats.

Comparison of Coatings Specifications

Test Parameter

AAMA 2603

AAMA 2604

AAMA 2605 and ASCA 96

PRETREATMENT REQUIREMENTS

Metal Preparation and Pretreatment

Multi-stage cleaning and pretreatment

Multi-stage cleaning and pretreatment

Multi-stage cleaning and pretreatment

Pretreatment Type

Chemical conversion coating

Chrome or non-chrome chemical conversion coating

Amorphous chromium phosphate or amorphous chromate treatment

Pretreatment Coating Weight

none specified

Chrome=30 mg/ft² minimum; non-chrome per supplier's specification

Chrome=40 mg/ft² minimum

PAINT FILM REQUIREMENTS

Dry Film Thickness

0.8 mils minimum

1.2 mils (for multicoat, 1.0 mil topcoat minimum & 0.3 +/- 0.1 mil primer)

1.2 mils (for multicoat, 1.0 mil topcoat minimum & 0.3 +/- 0.1 mil primer)

(None specified under ASCA 96)

Sealant Compatibility

meets AAMA 800

meets AAMA 800

meets AAMA 800

Specular Gloss

+/- 5 units of specification (high=80+, medium=20-79, low£19)

+/- 5 units of specification (high=80+, medium=20-79, low£19)

+/- 5 units of specification (high=80+, medium=20-79, low£19)

Dry Film Hardness

H minimum

F minimum

F minimum

ADHESION REQUIREMENTS

Dry Adhesion

0% failure (no loss)

0% failure (no loss)

0% failure (no loss)

Wet Adhesion

0% failure (no loss)

0% failure (no loss)

0% failure (no loss)

Boiling Water Adhesion

none specified

0% failure (no loss)

0% failure (no loss)

Impact Resistance

no removal of film from substrate

no removal of film from substrate

no removal of film from substrate

Abrasion Resistance

none specified

abrasion coefficient value = 20 minimum

abrasion coefficient value = 40 minimum

CHEMICAL RESISTANCE REQUIREMENTS

Muriatic Resistance

15-minute exposure: no blistering or visual change

15-minute exposure: no blistering or visual change

15-minute exposure: no blistering or visual change

Mortar Resistance

24-hour exposure: no loss of film adhesion or visual change

24-hour exposure: no loss of film adhesion or visual change

24-hour exposure: no loss of film adhesion or visual change

Nitric Acid Resistance

none specified

30-minute exposure: 5 Delta E (Hunter) maximum color change

30-minute exposure: 5 Delta E (Hunter) maximum color change

Detergent Resistance

72-hour exposure: no loss of adhesion, no blistering, no significant visual change

72-hour exposure: no loss of adhesion, no blistering, no significant visual change

72-hour exposure: no loss of adhesion, no blistering, no significant visual change

Window Cleaner Resistance

none specified

24-hour exposure: no blistering or appearance change

24-hour exposure: no blistering or appearance change

(None specified under ASCA 96)

 CORROSION RESISTANCE REQUIREMENTS

Humidity Resistance

1,500 hours: no more than ``few" blisters size 8, figure no. 4, ASTM D 714

3,000 hours: no more than ``few" blisters size 8, figure no. 4, ASTM D 714

4,000 hours: no more than ``few" blisters size 8, figure no. 4, ASTM D 714

Salt Spray Resistance

1,500 hours of salt solution: minimum rating of 7 on scribe or cut edges; minimum blister rating of 8 in the field

(ASTM D 1654)

3,000 hours of salt solution: minimum rating of 7 on scribe or cut edges; minimum blister rating of 8 in the field

(ASTM D 1654)

4,000 hours of salt solution: minimum rating of 7 on scribe or cut edges; minimum blister rating of 8 in the field

(ASTM D 1654)

WEATHERING RESISTANCE REQUIREMENTS

Accelerated Exposure

1,000 hours in Atlas Type ``XW" weatherometer: no adhesion loss; slight chalking or color change

none specified

none specified

Outdoor Exposure

1 year South Florida, 45m south: no adhesion loss; slight chalking or fading

5 years South Florida, 45m south: 5 Delta E (Hunter) maximum color change; chalking < 8 (ASTM

D 4214); gloss retention > 30%; erosion resistance < 10% film loss

10 years South Florida, 45m south:

 5 Delta E (Hunter) maximum color change; chalking < 8 (ASTM

D 4214), gloss retention > 50%; erosion resistance < 10% film loss

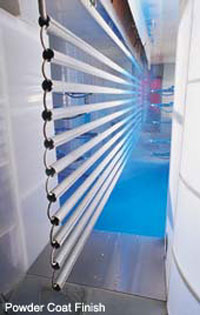

Powder coating is a dry finishing process, using finely ground particles of pigment and resin which are electrostatically charged and sprayed onto a part to be coated. The parts to be coated are electrostatically grounded so that the charged powder particles projected at them adhere and are held there until melted and fused into a smooth coating in the curing oven. The result is a uniform, durable, high quality finish that is also environmentally friendly. The performance characteristics of powder coating match or exceed the characteristics achieved from conventional solvent based coatings. Powder coating provides an extremely durable finish and has bonding capabilities superior to traditional wet paint. In addition it has excellent chemical resistance.
